The Innovation! Level Measurement Through Glass with the TMD and Fiber Optics
Discover the cutting-edge time-of-flight sensor, the TMD from Tippkemper-Matrix – engineered for highly accurate and reliable measurements even in the most challenging environments. Perfectly suited for precise level monitoring, distance measurement, and position detection applications.
Our TMD sensor stands out with:
- Explosion-proof design (Ex d)
- Measuring ranges from 10 mm to 2000 mm on white targets
- Measurement on surfaces of transparent liquids such as paints, solvents, or flammable liquids
- Flexible output signals: digital (RS-485), analog (4 to 20 mA), or switching output

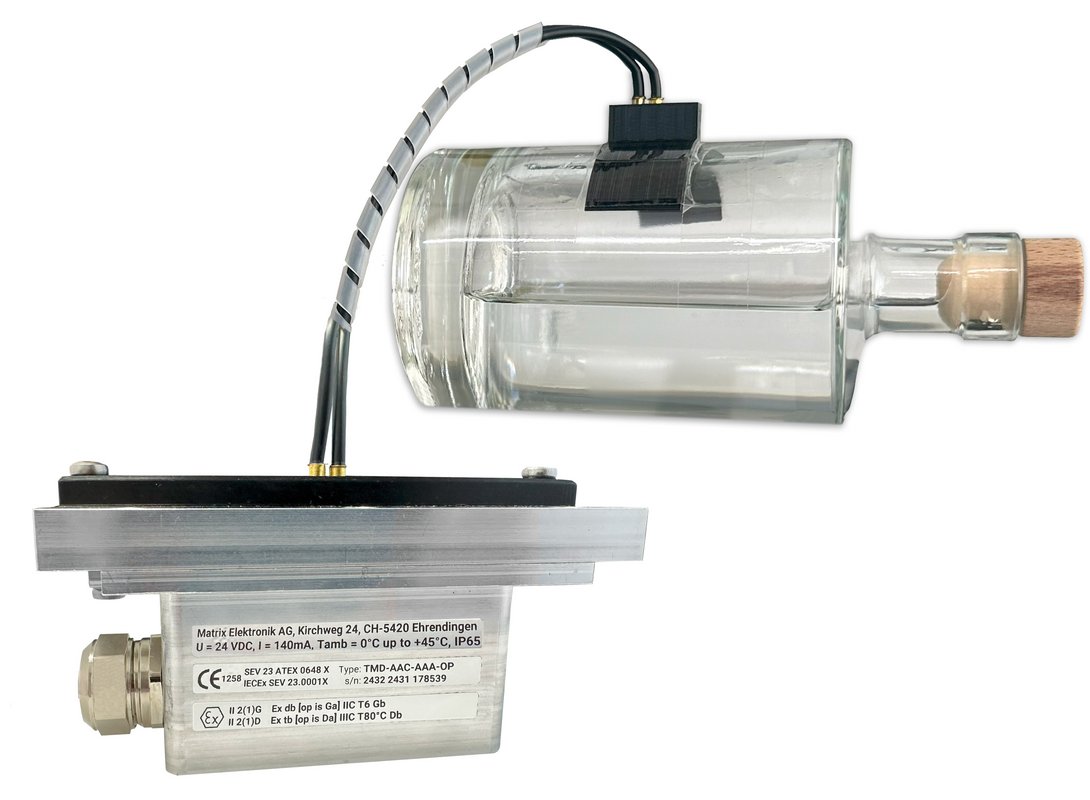

New! With our innovative extension for fiber optics (LWL), we significantly expand the range of applications:
- The fiber optic (LWL) is directly coupled to the sensor, significantly expanding the range of applications.
- Measurements in glass tubes, including transparent liquids, are now possible.
- Perfect for measurements in Ex Zone 0 – highest safety guaranteed.
- Access hard-to-reach areas – even behind glass panes.
- The fiber optic cable is up to 2 meters long, allowing flexible installation.
- Measurement range with fiber optics: 30 mm to 400 mm on transparent liquids.
